Product Name: |
Steel Wire Braided Hydraulic Hose With Fiber Cover |
Application: |
Petroleum Base Hydraulic Fluids |
Standard: |
SAE 100 R5 |
Material: |
Nitrile Rubber |
Capability: |
Rubber Oil Hose |
Color: |
Black |
Product Name: |
Steel Wire Braided Hydraulic Hose With Fiber Cover |
Application: |
Petroleum Base Hydraulic Fluids |
Standard: |
SAE 100 R5 |

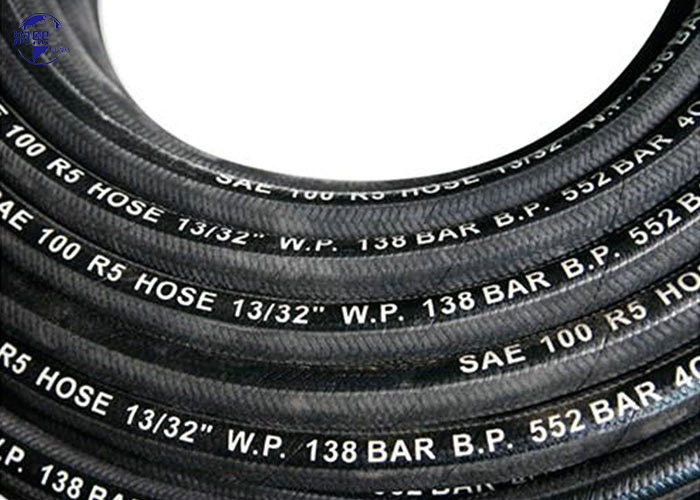

SAE 100 R5 steel wire reinforced and fiber braided hydraulic hose is an ideal choice for applications where medium pressure and impulse fatigue resistance are required, including petroleum-based hydraulic fluids, lubricating oils, water, and air piping, air brake systems, power steering, fuel filter, turbo oil lines, and tilt cab cylinders. It is made up of an inner tube, reinforcement, and outer cover. The tube is composed of oil-resistant and heat insulating synthetic rubber, providing an excellent channel to transfer oils or fluids between different components. The reinforcement is made of one single layer of braided steel wire, providing the hose with a solid structure. The outer cover is comprised of braided fiber, providing the hose with weather, aging, and corrosion resistance.
CONSTRUCTION:
This hose shall consist of an inner tube of oil resistant synthetic rubber, a single steel wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
This section covers hose for use with petroleum base hydraulic fluids within a temperature range of -40℃～ +100℃.
Medium pressure lines with installation constraints &General conditions
•Fluids : Mineral oils , Vegetable and rape seed oils, Glycols and Polyglycol based oils, Synthetic ester based oils, Oils in aqueous emulsion, water, diesel fuel (Up to 93℃ ).
|
SIZE
|
SIZE
|
I.D
|
W.D
|
O.D
|
W.P
|
P.P | B.P |
min B.R
|
W.T
|
||||||||
| mm | Inch | Min | Max | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm |
Kg/m
|
| 5 | 3/16 | 4.6 | 5.4 | 8.9 | 10.1 | 11.9 | 13.5 | 12.5 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 3.54 | 90 | 0.20 |
| 6.3 | 1/4 | 6.2 | 7.0 | 10.6 | 11.7 | 15.1 | 16.7 | 14.1 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 3.94 | 100 | 0.25 |
| 8 | 5/16 | 7.7 | 8.5 | 12.1 | 13.3 | 16.7 | 18.3 | 15.7 | 17.5 | 2540 | 35 | 5075 | 70 | 10150 | 4.53 | 115 | 0.31 |
| 10 | 3/8 | 9.3 | 10.1 | 14.5 | 15.7 | 19.0 | 20.6 | 18.1 | 15.7 | 2280 | 31.5 | 4570 | 63 | 9135 | 4.92 | 125 | 0.36 |
| 12.5 | 1/2 | 12.3 | 13.5 | 17.5 | 19.0 | 22.2 | 23.8 | 21.5 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 7.09 | 180 | 0.45 |
| 16 | 5/8 | 15.5 | 16.7 | 20.6 | 22.2 | 25.4 | 27.0 | 24.7 | 10.5 | 1520 | 21 | 3045 | 42 | 6090 | 8.07 | 205 | 0.52 |
| 19 | 3/4 | 18.6 | 19.8 | 24.6 | 26.2 | 29.4 | 31.0 | 28.6 | 8.7 | 1260 | 17.5 | 2540 | 35 | 5075 | 9.45 | 240 | 0.65 |
| 25 | 1 | 25.0 | 26.4 | 32.5 | 34.1 | 36.9 | 39.3 | 36.6 | 7 | 1015 | 14 | 2030 | 28 | 4060 | 11.81 | 300 | 0.91 |
| 31.5 | 1-1/4 | 31.4 | 33.0 | 39.3 | 41.7 | 44.4 | 47.6 | 44.8 | 4.3 | 620 | 8.7 | 1260 | 17.5 | 2540 | 16.54 | 420 | 1.30 |
| 38 | 1-1/2 | 37.7 | 39.3 | 45.6 | 48.0 | 50.8 | 54.0 | 52.0 | 3.5 | 510 | 7 | 1015 | 14 | 2030 | 19.69 | 500 | 1.70 |
| 51 | 2 | 50.4 | 52.0 | 58.7 | 61.9 | 65.1 | 68.3 | 65.9 | 2.6 | 380 | 5.2 | 750 | 10.5 | 1520 | 24.8 | 630 | 2.00 |
