Product Details
Place of Origin: CHINA
Brand Name: JIAYAO/RUNXI/OEM/ODM
Certification: ISO 9001
Model Number: SAE100 R8
Payment & Shipping Terms
Minimum Order Quantity: 1 Meter
Price: US$ 1 Meter
Payment Terms: L/C, T/T
Material: |
Thermoplastic |
Capability: |
Rubber Oil Hose |
Color: |
Red/Black/Blue/Orange, Etc. |
Product Name: |
Thermoplastic Hydraulic Hose |
Application: |
Petroleum Base Hydraulic Fluids |
Standard: |
SAE 100 R8 |
Surface: |
Smooth |
Certification: |
ISO9001:2008 |
Working Temperature: |
-40 To 93°c |
Size: |
1/4"~2" |
Feature: |
Flexible, Corrosion Resistant, Abrasion Resistant |
Material: |
Thermoplastic |
Capability: |
Rubber Oil Hose |
Color: |
Red/Black/Blue/Orange, Etc. |
Product Name: |
Thermoplastic Hydraulic Hose |
Application: |
Petroleum Base Hydraulic Fluids |
Standard: |
SAE 100 R8 |
Surface: |
Smooth |
Certification: |
ISO9001:2008 |
Working Temperature: |
-40 To 93°c |
Size: |
1/4"~2" |
Feature: |
Flexible, Corrosion Resistant, Abrasion Resistant |
SAE 100 R8 Thermoplastic Hydraulic Hose:
SAE 100 R8 thermoplastic hydraulic hose is suitable for delivering synthetic, petroleum or water-based hydraulic fluids and it is mainly used in high pressure working conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality hydraulic fluids resistant thermoplastic, making the hose widely used for the delivery of hydraulic fluids. The reinforcement is made from suitable synthetic fiber. The cover is made from weather and hydraulic fluids resistant thermoplastic, making the hose have longer service life.
SAE 100 R8 hose shall consist of a thermoplastic(such as nylon, polyurethane, or polyester) inner tube resistant to hydraulic fluids with suitable synthetic fiber reinforcement, and a hydraulic fluid and weather resistant thermoplastic cover.
CONSTRUCTION:

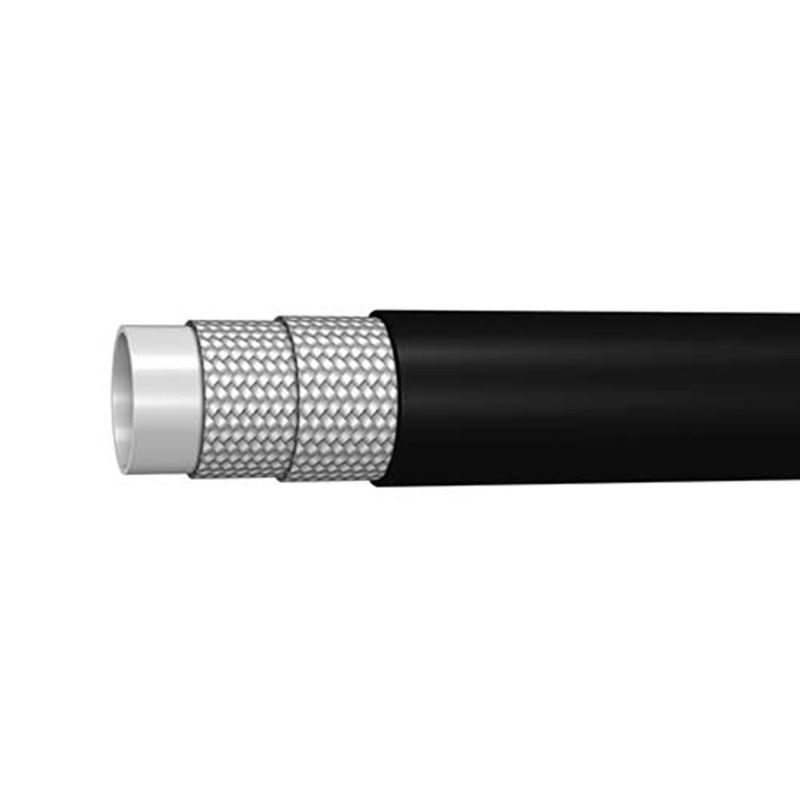

This hose shall consist of a thermoplastic inner tube, and a layer of synthetic fiber reinforcement, and a hydraulic fluid and weather resistant thermoplastic cover.
APPLICATIONS:
This section covers hose for use with petroleum base hydraulic fluids within a temperature range of -40℃～ +93℃.
Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R7 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.
Construction and agricultural equipment - Agricultural brake systems- Forklift Trucks - Articulating and telescopic booms - Aerial platforms Scissor lifts - Cranes - General hydraulics - Industrial gases
FEATURES:
1. Non-conductive due to its appropriate materials.
2. Good resistance to oil.
3. Good resistance to weather and hydraulic fluids.
Advantages:
1. The resin hose is made of special synthetic rubber, which has excellent oil resistance, heat resistance and aging resistance.
2. The resin hose has high pressure and excellent pulse performance.
3.The tube body is tightly combined, soft in use, and small
in deformation under pressure.
4. Resin hose has excellent bending resistance and fatigue resistance.
SIZE
| SIZE
| I.D
| O.D
| W.P
| P.P
| B.P
| min B.R
| W.T
| |||||
| mm | Inch | Min | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | Kg/m
|
| 5 | 3/16 | 4.6 | 5.4 | 14.6 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 3.54 | 90 | 0.086 |
| 6.3 | 1/4 | 6.2 | 7.0 | 16.8 | 35 | 5070 | 70 | 10150 | 140 | 20300 | 3.94 | 100 | 0.097 |
| 10 | 3/8 | 9.3 | 10.3 | 20.3 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 4.92 | 125 | 0.178 |
| 12.5 | 1/2 | 12.3 | 13.5 | 24.6 | 24.5 | 3550 | 49 | 7100 | 98 | 14510 | 7.09 | 180 | 0.246 |
| 16 | 5/8 | 15.5 | 16.7 | 29.8 | 19.2 | 2780 | 38.4 | 5560 | 76.8 | 11120 | 8.07 | 205 | 0.312 |
| 19 | 3/4 | 18.6 | 19.8 | 33 | 15.7 | 2275 | 31.4 | 4550 | 62.8 | 9100 | 9.45 | 240 | 0.36 |
| 25 | 1 | 25.0 | 26.4 | 38.6 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 11.81 | 300 | 0.505 |
