Product Details
Place of Origin: CHINA
Brand Name: JIAYAO/RUNXI/OEM/ODM
Certification: ISO 9001
Model Number: EN856 4SH/4SP
Payment & Shipping Terms
Minimum Order Quantity: 1 Meter
Price: US$ 1 Meter
Payment Terms: L/C, T/T
Material: |
Nitrile Rubber |
Capability: |
Rubber Oil Hose |
Product Name: |
Wire Spiral Hydraulic Hose |
Application: |
Oil Cooling System |
Standard: |
En856 4SH |
Color: |
Black |
Surface: |
Wrapped Or Smooth |
Certification: |
ISO9001:2008 |
Feature: |
Flexible |
Working Temperature: |
-40 To 100°c |
Material: |
Nitrile Rubber |
Capability: |
Rubber Oil Hose |
Product Name: |
Wire Spiral Hydraulic Hose |
Application: |
Oil Cooling System |
Standard: |
En856 4SH |
Color: |
Black |
Surface: |
Wrapped Or Smooth |
Certification: |
ISO9001:2008 |
Feature: |
Flexible |
Working Temperature: |
-40 To 100°c |
EN856 4SH Wire Spiral Hydraulic Hose:
Features:
◆ work well in conveying oils
◆ resistant to abrasion, corrosion and oil
◆ resistant to high pressure
◆ corrosion, abrasion, weather and ozone resistant synthetic rubber and the appearance is cloth impression rubber.
This hose can be used in construction, machine tool and agriculture field.
E.g. Mine hydraulic fluid, oil exploration, crane, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery and various machines tools.etc.
|
SIZE
|
SIZE
|
I.D
|
W.D
|
O.D
|
W.P
|
P.P
|
B.P
|
min B.R
|
W.T
|
|||||||
| mm | Inch | Min | Max | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm |
Kg/m
|
| 19 | 3/4 | 18.6 | 19.8 | 27.6 | 29.2 | 31.4 | 33.0 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 11.02 | 280 | 1.70 |
| 25 | 1 | 25.0 | 26.4 | 34.4 | 36.0 | 37.5 | 39.9 | 38 | 5510 | 76 | 11020 | 152 | 22040 | 13.39 | 340 | 2.50 |
| 31.5 | 1-1/4 | 31.4 | 33.0 | 40.9 | 42.9 | 43.9 | 47.1 | 32.5 | 4710 | 65 | 9425 | 130 | 18850 | 18.11 | 460 | 3.00 |
| 38 | 1-1/2 | 37.7 | 39.3 | 47.8 | 49.8 | 51.9 | 55.1 | 29 | 4205 | 58 | 8410 | 116 | 16820 | 22.05 | 560 | 3.60 |
| 51 | 2 | 50.4 | 52.0 | 62.2 | 64.2 | 66.5 | 69.7 | 25 | 3625 | 50 | 7250 | 100 | 14500 | 27.56 | 700 | 5.00 |
EN856 4SP Wire Spiral Hydraulic Hose:

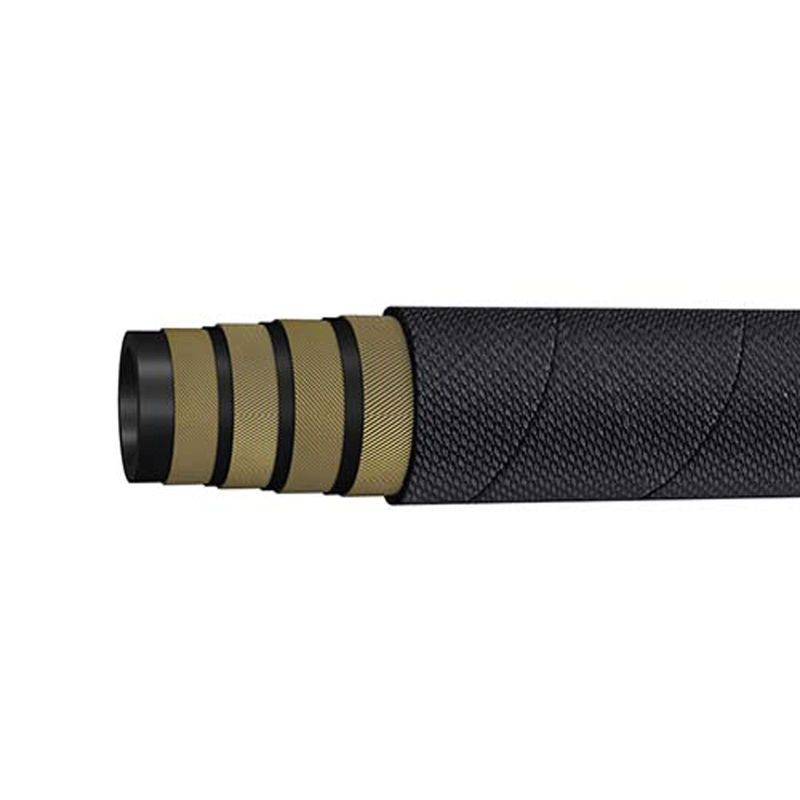

This hose shall consist of an inner tube of oil resistant synthetic rubber; four spiral plies of steel wire wrapped in alternating directions, and an oil and weather resistant synthetic rubber cover.
This hose can be used in construction, machine tool and agriculture field.
E.g. Mine hydraulic fluid, oil exploration, crane, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery and various machines tools.etc.
◆ resistant to abrasion and corrosion
◆ perfectly resistant to high pressure
◆ resistant to abrasion, corrosion, cut, weather, ozone, oil and aging
◆ longer service life
|
SIZE |
SIZE
|
I.D
|
W.D
|
O.D
|
W.P
|
P.P
|
B.P
|
min B.R
|
W.T
|
|||||||
| mm | Inch | Min | Max | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm |
Kg/m
|
| 6.3 | 1/4 | 6.2 | 7.0 | 14.1 | 15.3 | 17.1 | 18.7 | 45 | 6525 | 90 | 13050 | 180 | 26100 | 5.91 | 150 | 0.64 |
| 10 | 3/8 | 9.3 | 10.1 | 16.9 | 18.1 | 20.6 | 22.2 | 44.5 | 6450 | 89 | 12905 | 178 | 25810 | 7.09 | 180 | 0.75 |
| 12.5 | 1/2 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | 41.5 | 6020 | 83 | 12035 | 166 | 24070 | 9.06 | 230 | 0.89 |
| 16 | 5/8 | 15.5 | 16.7 | 23.0 | 24.6 | 27.4 | 29.0 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 9.84 | 250 | 1.10 |
| 19 | 3/4 | 18.6 | 19.8 | 27.4 | 29.0 | 31.4 | 33.0 | 35 | 5075 | 70 | 10150 | 148 | 21460 | 11.81 | 300 | 1.50 |
| 25 | 1 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 13.39 | 340 | 2.00 |
| 31.5 | 1-1/4 | 31.4 | 33.0 | 45.0 | 47.0 | 49.2 | 52.4 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 18.11 | 460 | 3.00 |
| 38 | 1-1/2 | 37.7 | 39.3 | 51.4 | 53.4 | 55.6 | 58.8 | 18.5 | 2380 | 37 | 5365 | 74 | 10730 | 22.05 | 560 | 3.40 |
| 51 | 2 | 50.4 | 52.0 | 64.3 | 66.3 | 68.2 | 71.4 | 16.5 | 2390 | 33 | 4785 | 66 | 9570 | 25.98 | 660 | 4.35 |
