Product Details
Place of Origin: China
Brand Name: JIAYAO/RUNXI/OEM/ODM
Certification: ISO9001:2008
Model Number: Camlock Quick Coupling
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: US$ 1
Payment Terms: L/C, D/P, T/T
Connection: |
Male & Female |
Structure: |
Control |
Flexible Or Rigid: |
Rigid |
Material: |
Stainless Steel/Copper/Aluminum |
Standard: |
Standard |
Product Name: |
Camlock Coupling |
Connection: |
Male & Female |
Structure: |
Control |
Flexible Or Rigid: |
Rigid |
Material: |
Stainless Steel/Copper/Aluminum |
Standard: |
Standard |
Product Name: |
Camlock Coupling |
Camlock couplings, also known as cam and groove couplings, are a type of quick disconnect coupling commonly used in industrial applications for the transfer of liquids, powders, and granules.
Camlock fittings are couplings that allow users to quickly connect or disconnect pipe, hose or tubing without tools. Cam and groove fittings are also know as camlock fittings or couplings. These couplings consist of a grooved male adapter and a female cam coupler with handles or arms.
Consist of two main components: the male adapter (also known as the "cam" or "male end") and the female coupler (also known as the "groove" or "female end").
Types: A, B, C, D, E, F, DC, DP
Materials: 304/316 Stainless Steel, Copper, Aluminum, PP
This Type A camlock (Cam and Groove) fitting has a male camlock quick connect coupling on one side and female NPT threads on the other side. The male camlock side of this coupler will only attach to a female camlock. The female threaded side will connect to a male NPT (National Pipe Tapered) threaded pipe.
The body of this cam and groove fitting is made of aluminum. Aluminum cam lock fittings are lightweight and are corrosion and abrasion resistant. This fitting’s seal is made of NBR (Buna-N) rubber. Buna-N seals are resistant to fuel, oil, and other chemicals.
| Part No. |
Nominal Size |
Psi | Code | Unit of Measure: in |
Thread Size |
||||
| A | B | C | D | E | T | ||||
| CAM-07-A-AL | 3/4'' | 250 | A75 | 1.28 | 1.02 | 1.61 | 1.26 | 0.85 | 3/4'' |
| CAM-10-A-AL | 1'' | 250 | A100 | 1.52 | 1.37 | 2.03 | 1.44 | 0.93 | 1'' |
| CAM-12-A-AL | 1-1/4'' | 250 | A125 | 1.91 | 1.57 | 2.17 | 1.79 | 1.10 | 1-1/4'' |
| CAM-15-A-AL | 1-1/2'' | 250 | A150 | 2.20 | 1.61 | 2.20 | 2.10 | 1.42 | 1-1/2'' |
| CAM-20-A-AL | 2'' | 250 | A200 | 2.60 | 1.81 | 2.32 | 2.48 | 1.73 | 2'' |
| CAM-25-A-AL | 2-1/2'' | 150 | A250 | 3.15 | 1.97 | 2.68 | 2.98 | 2.13 | 2-1/2'' |
| CAM-30-A-AL | 3'' | 125 | A300 | 3.78 | 2.01 | 2.82 | 3.60 | 2.87 | 3'' |
| CAM-40-A-AL | 4'' | 100 | A400 | 4.82 | 2.12 | 2.91 | 4.70 | 3.68 | 4'' |
| CAM-60-A-AL | 6'' | 75 | A600 | 7.13 | 2.26 | 3.14 | 6.94 | 5.98 | 6'' |
This type B aluminum cam lock fitting has a female camlock (cam and groove) quick connect coupler on one side and a male NPT theads on the other side. The female camlock side of this coupler will only attach to a male camlock. The male threaded side will connect to a female NPT (National Pipe Tapered) threaded pipe.
The body of this cam and groove fitting is made of aluminum. This aluminum cam lock fitting is lightweight and resistant to abrasion corrosion and some chemicals. This fitting’s seal is made of NBR (Buna-N) rubber. Buna-N seals are resistant to fuel, oil, and other chemicals.
| Part No. |
Nominal Size |
Working Pressure:PSI | Unit of Measure: in | NPT Size | ||||||||
| AL | BR | PP | NG | SS | A | B | C | D | E | T | ||
| CAM-07-B-XX | 3/4'' | 250 | 250 | 125 | 125 | 250 | 1.63 | 1.28 | 1.31 | 0.75 | 2.06 | 3/4'' |
| CAM-10-B-XX | 1'' | 250 | 250 | 125 | 125 | 250 | 1.93 | 1.47 | 1.57 | 0.75 | 2.32 | 1'' |
| CAM-12-B-XX | 1-1/4'' | 250 | 250 | 125 | 125 | 250 | 2.30 | 1.81 | 1.79 | 0.79 | 2.58 | 1-1/4'' |
| CAM-15-B-XX | 1-1/2'' | 250 | 250 | 100 | 100 | 250 | 2.64 | 2.13 | 1.81 | 0.93 | 2.74 | 1-1/2'' |
| CAM-20-B-XX | 2'' | 250 | 250 | 100 | 100 | 250 | 3.23 | 2.52 | 2.07 | 0.96 | 3.03 | 2'' |
| CAM-25-B-XX | 2-1/2'' | 150 | 150 | 100 | - | 150 | 3.72 | 3.01 | 2.19 | 1.14 | 3.33 | 2-1/2'' |
| CAM-30-B-XX | 3'' | 125 | 125 | 75 | 75 | 125 | 4.33 | 3.63 | 2.28 | 1.24 | 3.52 | 3'' |
| CAM-40-B-XX | 4'' | 100 | 100 | 50 | 50 | 100 | 5.67 | 4.72 | 2.32 | 1.30 | 3.62 | 4'' |
| CAM-60-B-XX | 6'' | 75 | 75 | - | - | 75 | 7.77 | 6.96 | 2.47 | 1.61 | 4.09 | 6 '' |
This type C camlock (Cam and Groove) fitting has a female camlock quick connect coupling on one side and a hose shank on the other side. The female camlock side of this coupler will only attach to a male camlock. The hose shank side will connect to hose.
The body of this cam and groove fitting is made of aluminum. Aluminum cam lock fittings are lightweight and are corrosion and abrasion resistant. This fitting’s seal is made of NBR (Buna-N) rubber. Buna-N seals are resistant to fuel, oil, and other chemicals.
| Part No. |
Nominal Size |
Working Pressure:PSI | Unit of Measure: in | ||||||||
| AL | BR | PP | NG | SS | A | B | C | D | E | ||
| CAM-07-C-XX | 3/4'' | 250 | 250 | 125 | 125 | 250 | 1.63 | 1.28 | 0.56 | 0.85 | 3.19 |
| CAM-10-C-XX | 1'' | 250 | 250 | 125 | 125 | 250 | 1.93 | 1.47 | 0.75 | 1.08 | 3.74 |
| CAM-12-C-XX | 1-1/4'' | 250 | 250 | 125 | 125 | 250 | 2.30 | 1.81 | 1.00 | 1.34 | 4.04 |
| CAM-15-C-XX | 1-1/2'' | 250 | 250 | 100 | 100 | 250 | 2.64 | 2.13 | 1.20 | 1.56 | 4.59 |
| CAM-20-C-XX | 2'' | 250 | 250 | 100 | 100 | 250 | 3.23 | 2.52 | 1.63 | 2.06 | 5.30 |
| CAM-25-C-XX | 2-1/2'' | 150 | 150 | 100 | 100 | 150 | 3.72 | 3.01 | 2.09 | 2.62 | 5.61 |
| CAM-30-C-XX | 3'' | 125 | 125 | 75 | 75 | 125 | 4.33 | 3.63 | 2.54 | 3.06 | 5.91 |
| CAM-40-C-XX | 4'' | 100 | 100 | 50 | 50 | 100 | 5.67 | 4.72 | 3.35 | 4.06 | 6.40 |
| CAM-60-C-XX | 6'' | 75 | 75 | - | - | 75 | 7.77 | 6.96 | 5.63 | 6.06 | 9.22 |

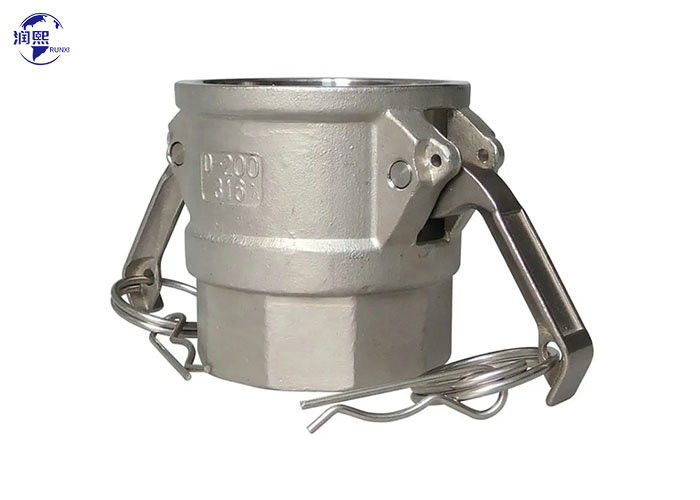

This type D camlock (Cam and Groove) fitting has a female camlock quick connect coupling on one side and a female NPT theads on the other side. The female camlock side of this coupler will only attach to a male camlock. The female threaded side will connect to a male NPT (National Pipe Tapered) threaded pipe.
The body of this cam and groove fitting is made of aluminum. Aluminum cam lock fittings are lightweight and are corrosion and abrasion resistant. This fitting’s seal is made of NBR (Buna-N) rubber. Buna-N seals are resistant to fuel, oil, and other chemicals.
| Part No. |
Nominal Size |
Working Pressure:PSI | Unit of Measure: in | NPT Size | ||||||||
| AL | BR | PP | NG | SS | A | B | C | D | E | T | ||
| CAM-07-D-XX | 3/4'' | 250 | 250 | 125 | 125 | 250 | 1.63 | 1.28 | 1.31 | 0.75 | 2.06 | 3/4'' |
| CAM-10-D-XX | 1'' | 250 | 250 | 125 | 125 | 250 | 1.93 | 1.47 | 1.57 | 0.75 | 2.32 | 1'' |
| CAM-12-D-XX | 1-1/4'' | 250 | 250 | 125 | 125 | 250 | 2.30 | 1.81 | 1.79 | 0.87 | 2.66 | 1-1/4'' |
| CAM-15-D-XX | 1-1/2'' | 250 | 250 | 100 | 100 | 250 | 2.64 | 2.13 | 1.81 | 0.93 | 2.74 | 1-1/2'' |
| CAM-20-D-XX | 2'' | 250 | 250 | 100 | 100 | 250 | 3.23 | 2.52 | 2.07 | 0.93 | 3.00 | 2'' |
| CAM-25-D-XX | 2-1/2'' | 150 | 150 | 100 | 100 | 150 | 3.72 | 3.01 | 2.19 | 1.14 | 3.33 | 2-1/2'' |
| CAM-30-D-XX | 3'' | 125 | 125 | 75 | 75 | 125 | 4.33 | 3.63 | 2.28 | 1.24 | 3.52 | 3'' |
| CAM-40-D-XX | 4'' | 100 | 100 | 50 | 50 | 100 | 5.67 | 4.72 | 2.32 | 1.30 | 3.62 | 4'' |
| CAM-60-D-XX | 6'' | 75 | 75 | - | - | 75 | 7.77 | 6.96 | 2.47 | 1.46 | 3.93 | 6 '' |
This type E camlock (Cam and Groove) fitting has a male quick connect coupling on one side and a hose shank on the other side. This male side of this coupler will attach to a female camlock. The hose shank side can be attached to hose.
The body of this cam and groove fitting is made of aluminum. Aluminum cam lock fittings are lightweight and are corrosion and abrasion resistant. These cam and groove fittings are suitable for use with water, hydraulic oils, coolants, gasoline, and other petroleum products.
| Part No. |
Nominal Size |
Working Pressure:PSI | Unit of Measure: in | |||||||||
| AL | BR | PP | NG | SS | A | B | C | D | E | F | ||
| CAM-07-E-XX | 3/4'' | 250 | 250 | 125 | 125 | 250 | 1.26 | 0.85 | 0.56 | 0.85 | 3.36 | 1.14 |
| CAM-10-E-XX | 1'' | 250 | 250 | 125 | 125 | 250 | 1.44 | 0.93 | 0.75 | 1.08 | 3.97 | 1.34 |
| CAM-12-E-XX | 1-1/4'' | 250 | 250 | 125 | 125 | 250 | 1.79 | 1.10 | 1.00 | 1.34 | 4.29 | 1.57 |
| CAM-15-E-XX | 1-1/2'' | 250 | 250 | 100 | 100 | 250 | 2.10 | 1.42 | 1.20 | 1.59 | 4.86 | 1.67 |
| CAM-20-E-XX | 2'' | 250 | 250 | 100 | 100 | 250 | 2.48 | 1.73 | 1.63 | 2.09 | 5.59 | 1.91 |
| CAM-25-E-XX | 2-1/2'' | 150 | 150 | 100 | 100 | 150 | 2.98 | 2.13 | 2.09 | 2.60 | 5.93 | 1.97 |
| CAM-30-E-XX | 3'' | 125 | 125 | 75 | 75 | 125 | 3.60 | 2.87 | 2.54 | 3.13 | 6.18 | 2.05 |
| CAM-40-E-XX | 4'' | 100 | 100 | 50 | 50 | 100 | 4.70 | 3.68 | 3.35 | 4.06 | 6.71 | 2.17 |
| CAM-60-E-XX | 6'' | 75 | 75 | - | - | 75 | 6.94 | 5.98 | 5.63 | 6.06 | 9.87 | 2.26 |
This type F camlock (Cam and Groove) fitting has a male camlock quick connect adapter on one side and male NPT theads on the other side. The male camlock side of this coupler will only attach to a female camlock. The male threaded side will connect to female NPT (National Pipe Tapered) threaded pipe.
The body of this cam and groove fitting is made of aluminum. Aluminum cam lock fittings are lightweight and are corrosion and abrasion resistant. These cam and groove fittings are suitable for use with water, hydraulic oils, coolants, gasoline, and other petroleum products.
| Part No. |
Nominal Size |
Working Pressure:PSI | Unit of Measure: in | NPT Size | |||||||
| AL | BR | PP | NG | SS | A | B | C | D | |||
| CAM-07-F-XX | 3/4'' | 250 | 250 | 125 | 125 | 250 | 1.28 | 0.85 | 1.26 | 2.17 | 3/4'' |
| CAM-10-F-XX | 1'' | 250 | 250 | 125 | 125 | 250 | 1.52 | 0.93 | 1.44 | 2.67 | 1'' |
| CAM-12-F-XX | 1-1/4'' | 250 | 250 | 125 | 125 | 250 | 1.85 | 1.10 | 1.79 | 3.07 | 1-1/4'' |
| CAM-15-F-XX | 1-1/2'' | 250 | 250 | 100 | 100 | 250 | 2.20 | 1.42 | 2.10 | 2.99 | 1-1/2'' |
| CAM-20-F-XX | 2'' | 250 | 250 | 100 | 100 | 250 | 2.56 | 1.73 | 2.48 | 3.29 | 2'' |
| CAM-25-F-XX | 2-1/2'' | 150 | 150 | 100 | - | 150 | 3.15 | 2.13 | 2.98 | 3.82 | 2-1/2'' |
| CAM-30-F-XX | 3'' | 125 | 125 | 75 | 75 | 125 | 3.74 | 2.87 | 3.60 | 3.92 | 3'' |
| CAM-40-F-XX | 4'' | 100 | 100 | 50 | 50 | 100 | 4.82 | 3.68 | 4.70 | 4.17 | 4'' |
| CAM-60-F-XX | 6'' | 75 | 75 | - | - | 75 | 7.13 | 5.98 | 6.94 | 4.74 | 6 '' |
This type DC camlock (Cam and Groove) fitting has a female quick connect coupling that attaches to and standard male cam and groove coupling.
The body is made of aluminum. Aluminum cam lock fittings are lightweight and are corrosion and abrasion resistant. This fitting’s seal is made of NBR (Buna-N) rubber. Buna-N seals are resistant to fuel, oil, and other chemicals. The cam arms are made of stainless steel and includes two locking cotter pins.
| Part No. |
Nominal Size |
Working Pressure:PSI | Unit of Measure: in | ||||||
| AL | BR | PP | NG | SS | A | B | C | ||
| CAM-07-DC-XX | 3/4'' | 250 | 250 | 125 | 125 | 250 | 1.63 | 1.28 | 1.31 |
| CAM-10-DC-XX | 1'' | 250 | 250 | 125 | 125 | 250 | 1.93 | 1.47 | 1.57 |
| CAM-12-DC-XX | 1-1/4'' | 250 | 250 | 125 | 125 | 250 | 2.30 | 1.81 | 1.79 |
| CAM-15-DC-XX | 1-1/2'' | 250 | 250 | 100 | 100 | 250 | 2.64 | 2.13 | 1.81 |
| CAM-20-DC-XX | 2'' | 250 | 250 | 100 | 100 | 250 | 3.23 | 2.52 | 2.03 |
| CAM-25-DC-XX | 2-1/2'' | 150 | 150 | 100 | 100 | 150 | 3.72 | 3.01 | 2.19 |
| CAM-30-DC-XX | 3'' | 125 | 125 | 75 | 75 | 125 | 4.33 | 3.63 | 2.28 |
| CAM-40-DC-XX | 4'' | 100 | 100 | 50 | 50 | 100 | 5.67 | 4.72 | 2.32 |
| CAM-60-DC-XX | 6'' | 75 | 75 | - | - | 75 | 7.77 | 6.96 | 2.47 |
This type DP male camlock (Cam and Groove) fitting has a male quick connect adapter that attaches to a standard female cam and groove coupling. The cam and groove dust plug used to plug the end of a pipe or hose with a female cam and groove coupler.
The body is made of aluminum. Aluminum cam lock fittings are lightweight and are corrosion and abrasion resistant. These cam and groove fittings are suitable for use with water, hydraulic oils, coolants, gasoline, and other petroleum products.
| Part No. |
Nominal Size |
Working Pressure:PSI | Unit of Measure: in | ||||||
| AL | BR | PP | NG | SS | A | B | C | ||
| CAM-07-DP-XX | 3/4'' | 250 | 250 | 125 | 125 | 250 | 1.02 | 1.26 | 1.50 |
| CAM-10-DP-XX | 1'' | 250 | 250 | 125 | 125 | 250 | 1.37 | 1.44 | 2.06 |
| CAM-12-DP-XX | 1-1/4'' | 250 | 250 | 125 | 125 | 250 | 1.57 | 1.79 | 2.26 |
| CAM-15-DP-XX | 1-1/2'' | 250 | 250 | 100 | 100 | 250 | 1.61 | 2.10 | 2.24 |
| CAM-20-DP-XX | 2'' | 250 | 250 | 100 | 100 | 250 | 1.81 | 2.48 | 2.50 |
| CAM-25-DP-XX | 2-1/2'' | 150 | 150 | 100 | 100 | 150 | 1.97 | 2.27 | 2.66 |
| CAM-30DP-XX | 3'' | 125 | 25 | 75 | 75 | 125 | 1.97 | 3.60 | 2.66 |
| CAM-40-DP-XX | 4'' | 100 | 100 | 50 | 50 | 100 | 2.00 | 4.70 | 2.75 |
| CAM-60-DP-XX | 6'' | 75 | 75 | - | - | 75 | 2.41 | 6.92 | 3.52 |
