EPDM Rubber Flexible Braided Steam Hose Smooth Wrapped Heat Resistant

Name: EPDM Rubber Flexible Braided Steam Hose Smooth Wrapped Heat Resistant
Brand: JIAYAO/RUNXI/OEM/ODM
SKU: Steam Hose
Price: 1 USD
Availability: InStock
Rating: 4.7 (130 reviews)

Product Details

Place of Origin: China

Brand Name: JIAYAO/RUNXI/OEM/ODM

Certification: ISO9001:2008

Model Number: Steam Hose

Payment & Shipping Terms

Minimum Order Quantity: 1 Meter

Price: US$ 1/Meter

Payment Terms: L/C, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    rubber flexible braided steam hose, flexible braided steam hose smooth wrapped, epdm braided flexible hose pipe


Capability:	Heat-resistant Rubber Hose	Color:	Red/Black
Product Name:	EPDM Rubber Steam Hose	Application:	Heat Control, Fire Prevention, Steam Transfer
Surface:	Cloth Wrapped Or Smooth	Material:	EPDM

Capability:	Heat-resistant Rubber Hose
Color:	Red/Black
Product Name:	EPDM Rubber Steam Hose
Application:	Heat Control, Fire Prevention, Steam Transfer
Surface:	Cloth Wrapped Or Smooth
Material:	EPDM

Description

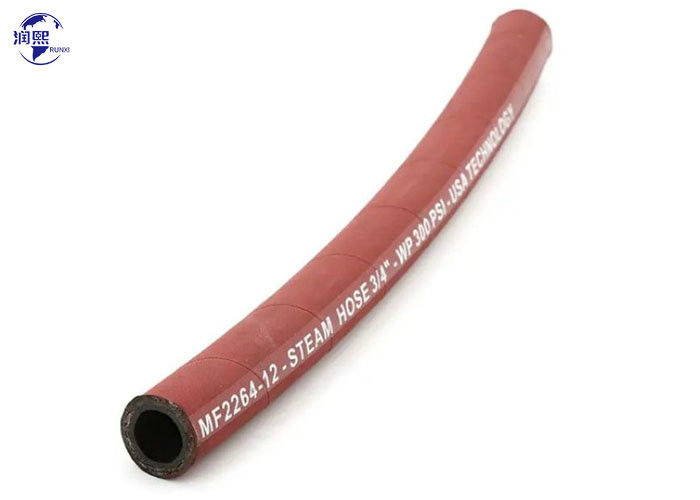

EPDM Rubber Flexible Braided Steam Hose Smooth Wrapped Heat Resistant

EPDM Steam hose is designed to convey saturated steam and pressurized hot water in steam cleaning, steam pumping, heat-control, fire-prevention services and food processing applications. They are mainly used to stand up to the high temperature and pressure. It is constructed with three parts: inner tube, reinforcement and outer cover. The tube is made from smooth and high-quality EPDM synthetic rubber, which has excellent resistance to high temperature. The hose can securely transfer steam as a result. One or two layers of braided steel wire with a high tensile and high strength is used as the reinforcement. They give the hose a sturdy structure to work well under high pressure. The cover is made from high-quality EPDM rubber, which has exceptional resistance to ozone, weather, aging, corrosion, and abrasion. The hose is hence durable to use for long service life, and is not easy to crack, burst or crush.

Steam hoses provide an excellent service across a wide variety of steam applications. Our steam hoses handle easily and are simple to install. They are also highly durable and have crush resistance, guaranteeing a long service life. These abrasion resistant hoses have the capability to withstand fluctuations in both temperature and weathering, maintaining superior performance throughout. All of our steam hoses meet industry standards and are suitable for use across many of the major industrial markets.

EPDM STEAM HOSE 230℃

Construction:
Tube: Synthetic rubber EPDM
Reinforcement: high tensile wire braiding
Cover:Red or blue, pin pricked smooth (wrapped finish),EPDM rubber

Application:
The steam hose is used for the saturated steam in chemical industry, petroleum industry, shipbuilding industry

Characteristics:
1.Excellent resistance to high temperature
2.Weathering and ozoen resistance
3.High abrasion resistant cover
4.Anti aging,long service life

Rubber steam hoses are commonly used for transferring steam in various industries, such as food processing, chemical plants, refineries, pharmaceuticals, and manufacturing facilities. The hoses can be utilized for transferring hot water and other fluids that require high-temperature handling, are also employed in steam cleaning and sterilization processes.

Steam Hose Size Chart:

内径 Inner Diameter		外径 Outer Diameter		工作压力 Working Pressure		爆破压力 Burst Pressure		重量 Weight		弯曲半径
mm	inch	mm	inch	bar	psi	bar	psi	kg/m	lbs/ft	mm
13	1/2	25	1	17	250	170	2500	0.53	0.36	91
19	3/4	32	1-7/32	17	250	170	2500	0.68	0.46	133
25	1	39	1-29/64	17	250	170	2500	0.90	0.62	175
32	1-1/4	46	1-13/16	17	250	170	2500	1.30	0.87	224
38	1-1/2	54	2-1/8	17	250	170	2500	1.60	1.10	266
51	2	57	2-41/64	17	250	170	2500	2.20	1.51	357
63	2-1/2	83	3-5/16	17	250	170	2500	3.80	2.61	445
76	3	95	3-13/16	17	250	170	2500	4.66	3.20	532
102	4	124	4-7/8	17	250	170	2500	6.50	4.46	714

EPDM Rubber Flexible Braided Steam Hose Smooth Wrapped Heat Resistant 4
