Product Details
Place of Origin: China
Certification: ISO9001:2008
Model Number: Silicone Coupling Hose
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: US$ 1/Piece
Payment Terms: L/C, T/T
Capability: |
Rubber Air Hose |
Color: |
Black, Red, Blue Or Customized |
Reinforced Ply: |
4 Ply, Polyester/Aramid/Glass Fiber Reinforced |
Surface Finish: |
Smooth |
Working Temperature: |
-40 To 200°c |
Material: |
Silicone Rubber |
Capability: |
Rubber Air Hose |
Color: |
Black, Red, Blue Or Customized |
Reinforced Ply: |
4 Ply, Polyester/Aramid/Glass Fiber Reinforced |
Surface Finish: |
Smooth |
Working Temperature: |
-40 To 200°c |
Material: |
Silicone Rubber |

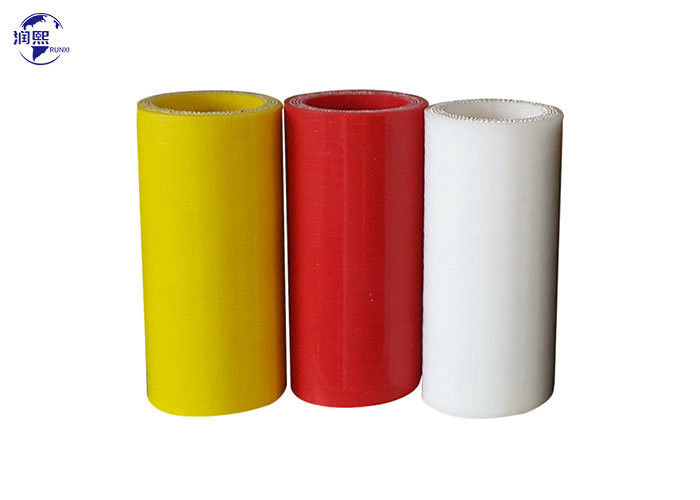

Cooling System High Temp 3/8 5/8 3/4 1 1-1/2 3 Inch Straight Silicone Rubber Hose Tube Coupling Hose
Straight Silicone Coupling Hose Size Chart:
| Specification - Straight Silicone Coupling Hose | |||||
| I.D | O.D | Thickness | Burst Pressure | Length | |
| Inch | mm | mm | mm | MPa | mm |
| 1/4 | 6 | 16 | 5 | 3.5 | 100 |
| 3/8 | 10 | 20 | 5 | 2.9 | 100 |
| 1/2 | 13 | 23 | 5 | 2.7 | 100 |
| 5/8 | 16 | 26 | 5 | 2.4 | 100 |
| 3/4 | 19 | 29 | 5 | 2.2 | 100 |
| 7/8 | 22 | 32 | 5 | 2.1 | 100 |
| 1 | 25 | 35 | 5 | 2 | 100 |
| 1-1/2 | 38 | 48 | 5 | 1.5 | 100 |
| 2 | 51 | 61 | 5 | 1.2 | 100 |
| 2-1/2 | 63 | 73 | 5 | 1 | 100 |
| 3 | 76 | 86 | 5 | 0.8 | 100 |
| 3-1/2 | 89 | 99 | 5 | 0.6 | 100 |
| 4 | 102 | 112 | 5 | 0.5 | 100 |
| Products | ID/mm | ID/inch |
| Straight Silicone Hose | 6mm-102mm | 1/''-4'' |
| Straight Silicone Coupling Hose | 6mm-102mm | 1/''-4'' |
| Flexible Silicone Hose | 13mm-63mm | 1/2''-2-1/2'' |
| Silicone Vacuum Hose | 13mm-63mm | 1/2''-2-1/2'' |
| Silicone Straight Reducer Hose | 8mm-127mm | / |
| 45 Degree Reducer Silicone Hose | 25mm-102mm | / |
| 90 Degree Reducer Silicone Hose | 13mm-102mm | / |
| 45 Degree Elbow Silicone Hose | 6mm-102mm | 1/4''-4'' |
| 60 Degree Elbow Silicone Hose | 19mm-76mm | 3/4''-3'' |
| 90 Degree Elbow Silicone Hose | 6mm-102mm | 1/4''-4'' |
| 135 Degree Elbow Silicone Hose | 6mm-100mm | 1/4''-4'' |
| 180 Degree Elbow Silicone Hose | 8mm-76mm | 5/16''-3'' |
| Tee Silicone Hose | 32mm-76mm | 1-1/4''-3'' |
| Silicone Hump Hose | 32mm-350mm | 1-1/4''-14'' |
| Silicone Heater Hose | 13mm-102mm | 1/2''-4'' |
| Food Grade Silicone Hose | 3mm-31mm | 1/8''-1-1/4'' |
| Medical Grade Silicone Hose | 6mm-102mm | 1/4''-4'' |
| Silicone Braided Hose | 3mm-31mm | 1/8''-1-1/4'' |
