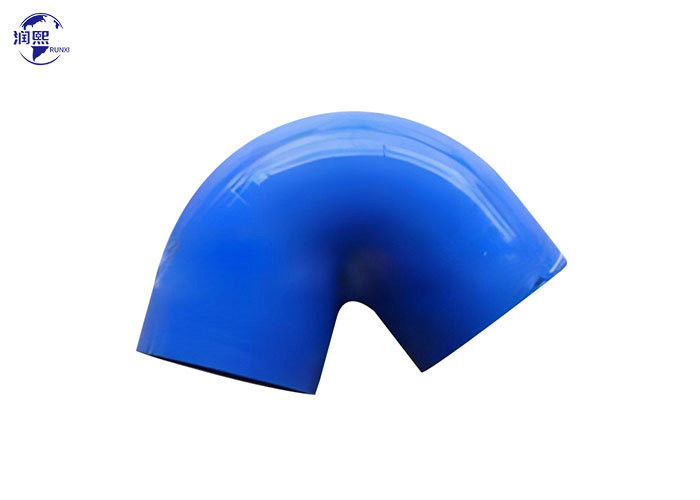

Industrial Truck Vehicle Auto Silicone Rubber Air Intake Coolant Hose Elbow

Name: Industrial Truck Vehicle Auto Silicone Rubber Air Intake Coolant Hose Elbow
Brand: Industrial Truck Vehicle Auto Silicone Rubber Air Intake Coolant Hose Elbow
SKU: Silicone Elbow
Price: 1 USD
Availability: InStock
Rating: 5 (138 reviews)

Product Details

Place of Origin: China

Certification: ASME, DIN, JIS, GB, ISO9001:2008

Model Number: Silicone Elbow

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: US$ 1/Piece

Payment Terms: L/C, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    air intake coolant hose elbow, truck coolant hose elbow, truck reinforced coolant hose


Connection:	Press Connection	Shape:	Equal
Head Code:	Round	Angle:	45 60 90 135 180 Degree
Certification:	ASME, DIN, JIS, GB, ISO9001:2008	Material:	Silicone Rubber

Connection:	Press Connection
Shape:	Equal
Head Code:	Round
Angle:	45 60 90 135 180 Degree
Certification:	ASME, DIN, JIS, GB, ISO9001:2008
Material:	Silicone Rubber

Description

Industrial Truck Vehicle Auto Silicone Rubber Air Intake Coolant Hose Elbow

Car Truck Flexible 45 60 90 135 180 Degree Turbo Air Intake Water Air Coolant Silicone Rubber Elbow Hose

Elbow silicone hose, reinforced by polyester, is very effective for carrying air, water, coolant, or sprayed by small amount of oil mist. It is often be found in vehicle cooling systems like cold sides of intercooler air hoses and general industrial application.

Construction:
- Material: Silicone or Fluorosilicone
- Cover: Silicone
- Reinforced ply: 4 ply
- Reinforced: Polyester/Aramid/Glass Fiber
- Temperature: -40 °C to +200 °C

Application:
1. It can join your intake pipe to the throttle body assembly, air metering assembly, intercooler, or turbo inlet/outlet.
2. Custom compressor, intercooler or inlet piping for turbo/supercharged car.
3. Custom cold air intake for no turbo car.
4. Replacement of all factory rubber parts.
5. These silicone parts can be used in trucks, recreational vehicles, boats, or anything else with an engine.

Silicone Elbow Hose Size Chart:

Specification - 60 degree elbow silicone hose
I.D		Wall	O.D	Leg Length
inch	mm	mm	mm	mm
3/4	19	5	29	102×102
1	25	5	35	102×102
1-1/4	32	5	42	102×102
1-3/8	35	5	45	102×102
1-1/2	38	5	48	102×102
2	51	5	61	102×102
2-1/2	63	5	73	102×102
3	76	5	86	102×102

Specification - 90 degree elbow silicone hose
I.D		Thickness	O.D	Max. Burst	LegLength
I.D		Thickness	O.D	Pressure	LegLength
inch	mm	mm	mm	MPa	mm
1/4	6	5	16	3.5	100×100
3/8	10	5	20	2.9	100×100
1/2	13	5	23	2.7	100×100
5/8	16	5	26	2.4	100×100
3/4	19	5	29	2.2	100×100
7/8	22	5	32	2.1	100×100
1	25	5	35	2	100×100
1-1/2	38	5	48	1.5	100×100
2	51	5	61	1.2	100×100
3	76	5	86	0.8	100×100
3-1/2	89	5	99	0.6	100×100
4	102	5	112	0.5	100×100

Specification - 45 degree elbow silicone hose
I.D		O.D	Thickness	Max. Burst Pressure	Length
inch	mm	mm	mm	MPa	mm
1/4	6	16	5	3.5	100×100
3/8	10	20	5	2.9	100×100
1/2	13	23	5	2.7	100×100
5/8	16	26	5	2.4	100×100
3/4	19	29	5	2.2	100×100
7/8	22	32	5	2.1	100×100
1	25	35	5	2	100×100
1-1/2	38	48	5	1.5	100×100
2	51	61	5	1.2	100×100
3	76	86	5	0.8	100×100
3-1/2	89	99	5	0.6	100×100
4	102	112	5	0.5	100×100

Specification - 135 degree elbow silicone hose
I.D		Thickness	O.D	Max. Burst Pressure	LegLength
inch	mm	mm	mm	MPa	mm
1/4	6	5	16	3.5	100×100
3/8	10	5	20	2.9	100×100
1/2	13	5	23	2.7	100×100
5/8	16	5	26	2.4	100×100
3/4	19	5	29	2.2	100×100
7/8	22	5	32	2.1	100×100
1	25	5	35	2	100×100
1-1/2	38	5	48	1.5	100×100
2	51	5	61	1.2	100×100
3	76	5	86	0.8	100×100
3-1/2	89	5	99	0.6	100×100
4	100	5	110	0.5	100×100

Specification - 180 degree elbow silicone hose
I.D		Thickness	O.D	Leg Length
inch	mm	mm	mm	mm
5/16	8	5	18	100×100
3/8	10	5	20	100×100
1/2	13	5	23	100×100
5/8	16	5	26	100×100
3/4	19	5	29	100×100
1	25	5	35	100×100
1-1/4	32	5	42	100×100
1-1/2	38	5	48	100×100
1-3/4	45	5	55	100×100
2	51	5	61	100×100
2-1/2	64	5	74	100×100
3	76	5	86	100×100
