Product Details
Place of Origin: China
Brand Name: JIAYAO/RUNXI/OEM/ODM
Certification: ISO9001:2008
Model Number: Silicone Elbow Reducer
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece
Price: US$ 1/Piece
Payment Terms: L/C, T/T
Type: |
Eccentric |
Customized: |
Customized |
Product Name: |
Silicone Reducer Elbow Couplers |
Reinforced Ply: |
3, 4, 5, 6 Ply Optional |
Surface Finish: |
Smooth |
Material: |
Silicone Rubber |
Type: |
Eccentric |
Customized: |
Customized |
Product Name: |
Silicone Reducer Elbow Couplers |
Reinforced Ply: |
3, 4, 5, 6 Ply Optional |
Surface Finish: |
Smooth |
Material: |
Silicone Rubber |

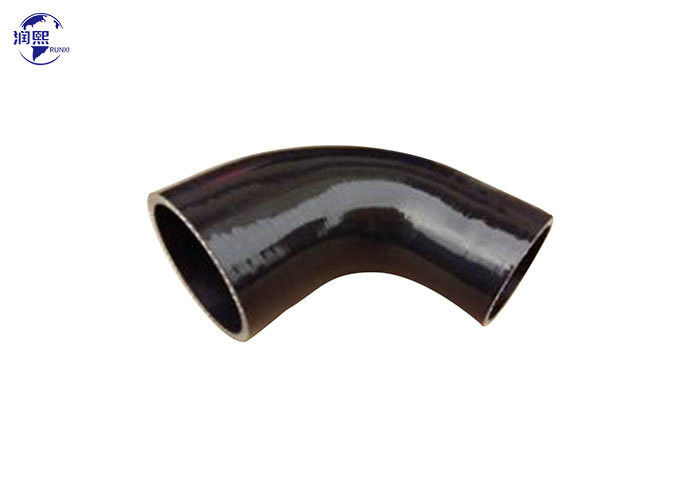

Auto Water Air Cooling Air Intake Silicone Rubber Reducer Elbow Hose Tube Couplers
Silicone Reducer Hose Elbow Coupling Size Chart:
| Specification - 45 degree silicone reducer | ||||
| I.D | Layers | Thickness | Length | |
| mm | mm | mm | inch | |
| 32 to 25 | 3 | 4 | 102×102 | 4×4 |
| 38 to 32 | 3 | 4 | 102×102 | 4×4 |
| 63 to 51 | 4 | 5 | 102×102 | 4×4 |
| 76 to 63 | 4 | 5 | 102×102 | 4×4 |
| 102 to 76 | 5 | 6 | 125×125 | 5×5 |
| Specification - 90 degree silicone reducer | |||
| I.D | Layers | Thickness | Length |
| mm | mm | mm | |
| 19 to 13 | 4 | 3 | 102×102 |
| 19 to 16 | 4 | 3 | 102×102 |
| 22 to 16 | 4 | 3 | 102×102 |
| 22 to 19 | 4 | 3 | 102×102 |
| 25 to 19 | 4 | 3 | 102×102 |
| 32 to 19 | 4 | 3 | 102×102 |
| 32 to 25 | 4 | 3 | 102×102 |
| 35 to 22 | 4 | 3 | 102×102 |
| 35 to 25 | 4 | 3 | 102×102 |
| 35 to 32 | 4 | 3 | 102×102 |
| 38 to 25 | 4 | 3 | 102×102 |
| 38 to 32 | 4 | 3 | 102×102 |
| 38 to 35 | 4 | 3 | 102×102 |
| 44 to 38 | 4 | 3 | 102×102 |
| 51 to 44 | 5 | 4 | 102×102 |
| 54 to 51 | 5 | 4 | 102×102 |
| 57 to 54 | 5 | 4 | 102×102 |
| 60 to 51 | 5 | 4 | 102×102 |
| 63 to 51 | 5 | 4 | 102×102 |
| 63 to 54 | 5 | 4 | 102×102 |
| 63 to 54 | 5 | 4 | 102×102 |
| 70 to 51 | 5 | 4 | 125x125 |
| 70 to 60 | 5 | 4 | 125x125 |
| 70 to 63 | 5 | 4 | 125x125 |
| 76 to 51 | 5 | 4 | 125x125 |
| 76 to 60 | 5 | 4 | 125x125 |
| 76 to 63 | 5 | 4 | 125x125 |
| 76 to 70 | 5 | 4 | 125x125 |
| 89 to 76 | 5 | 4 | 125x125 |
| 102 to 76 | 6 | 5 | 125x125 |
| 102 to 89 | 6 | 5 | 125x125 |
| Products | ID/mm | ID/inch |
| Straight Silicone Hose | 6mm-102mm | 1/''-4'' |
| Straight Silicone Coupling Hose | 6mm-102mm | 1/''-4'' |
| Flexible Silicone Hose | 13mm-63mm | 1/2''-2-1/2'' |
| Silicone Vacuum Hose | 13mm-63mm | 1/2''-2-1/2'' |
| Silicone Straight Reducer Hose | 8mm-127mm | / |
| 45 Degree Reducer Silicone Hose | 25mm-102mm | / |
| 90 Degree Reducer Silicone Hose | 13mm-102mm | / |
| 45 Degree Elbow Silicone Hose | 6mm-102mm | 1/4''-4'' |
| 60 Degree Elbow Silicone Hose | 19mm-76mm | 3/4''-3'' |
| 90 Degree Elbow Silicone Hose | 6mm-102mm | 1/4''-4'' |
| 135 Degree Elbow Silicone Hose | 6mm-100mm | 1/4''-4'' |
| 180 Degree Elbow Silicone Hose | 8mm-76mm | 5/16''-3'' |
| Tee Silicone Hose | 32mm-76mm | 1-1/4''-3'' |
| Silicone Hump Hose | 32mm-350mm | 1-1/4''-14'' |
| Silicone Heater Hose | 13mm-102mm | 1/2''-4'' |
| Food Grade Silicone Hose | 3mm-31mm | 1/8''-1-1/4'' |
| Medical Grade Silicone Hose | 6mm-102mm | 1/4''-4'' |
| Silicone Braided Hose | 3mm-31mm | 1/8''-1-1/4'' |
