Automobile Intercooler Radiator Turbo Fittings T Shaped Silicone Rubber Hose Tube

Name: Automobile Intercooler Radiator Turbo Fittings T Shaped Silicone Rubber Hose Tube
Brand: JIAYAO/RUNXI/OEM/ODM
SKU: T Silicone Hose
Price: 1 USD
Availability: InStock
Rating: 4.7 (128 reviews)

Product Details

Place of Origin: China

Brand Name: JIAYAO/RUNXI/OEM/ODM

Certification: ISO9001:2008

Model Number: T Silicone Hose

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: US$ 1/Piece

Payment Terms: L/C, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    red rubber silicone hose, red silicone rubber hose, blue rubber silicone hose


Color:	Black, Red, Blue Or Customized	Capability:	Rubber Air Hose
Product Name:	T Silicone Rubber Hose Connector	Reinforced Ply:	Polyester/Nomex Reinforcement
Surface Finish:	Smooth	Material:	Silicone Rubber

Color:	Black, Red, Blue Or Customized
Capability:	Rubber Air Hose
Product Name:	T Silicone Rubber Hose Connector
Reinforced Ply:	Polyester/Nomex Reinforcement
Surface Finish:	Smooth
Material:	Silicone Rubber

Description

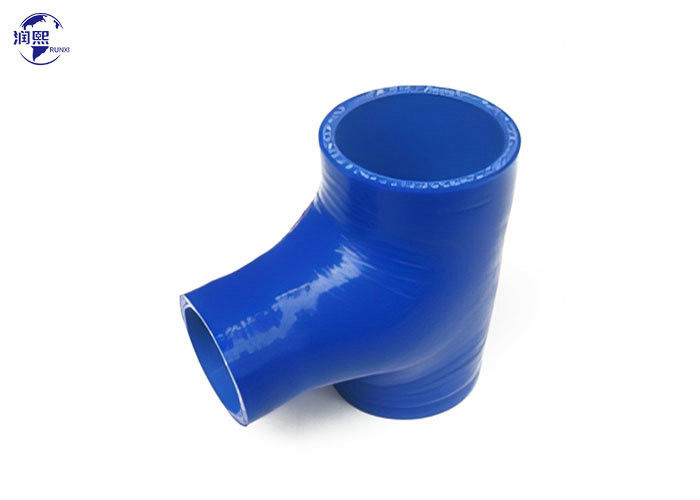

Automobile Intercooler Radiator Turbo Fittings T Shaped Silicone Rubber Hose Tube

Car Auto Parts Tee Silicone Rubber Tube Fitting Connector for Intercooler/Supercharger/Radiator/Turbocharger

T silicone hose connector features two different inner diameters
- the main body and the take off. This structure makes it an effective transition of different sizes of pipes. It is widely used in pump valve fitments and breather hose connectors. It has been designed to allow the integration of an additional outlet being plumbed into an engine system.

Features:
- Polyester or nomex reinforcement offers high temp and pressure than original rubber hose.
- Resistant to corrosion, low temperature, anti-ozone, oil, etc.
- Various colours and sizes for choice.
- High performance ratings with excellent reliability in all conditions.
- Easy to replace, cut and adapt to your piping needs.

T Silicone Hose Connector Size Chart:

Specification - T silicone hose
Main Body I.D		Take-Off I.D	Thickness	Length
inch	mm	mm	mm	mm
1-1/4	32	12	4	150
1-1/2	38	16	4	150
1-1/2	38	25	4	150
2	51	25	5	150
2-1/2	63	25	5	150
3	76	25	5	150

Silicone hose solves application requirements that many other plastic or rubber materials cannot, namely combining temperature usage with flexibility.

Silicone hoses are not made of 100% silicone rubber. They often use reinforcements or special liner to improve their working performance. Polyester, Nomex (aramid) or Fluoro are the frequent materials. Polyester and Nomex are used to improve their performance in flexibility and high burst resistance, while Fluoro is engineered to carry oils and fuel.

Silicone hoses have low thermal conductivity, low chemical reactivity, high thermal stability, flexibility and UVresistance. It still maintains good performance under extreme temperatures where black rubber hoses don't work. All of these characters contribute to wide applications. There is a trend that silicone hose will replace black rubber hose in some places, such as turbocharger, air intake, intercooler, etc.

Main Silicone Hoses:

Products	ID/mm	ID/inch
Straight Silicone Hose	6mm-102mm	1/''-4''
Straight Silicone Coupling Hose	6mm-102mm	1/''-4''
Flexible Silicone Hose	13mm-63mm	1/2''-2-1/2''
Silicone Vacuum Hose	13mm-63mm	1/2''-2-1/2''
Silicone Straight Reducer Hose	8mm-127mm	/
45 Degree Reducer Silicone Hose	25mm-102mm	/
90 Degree Reducer Silicone Hose	13mm-102mm	/
45 Degree Elbow Silicone Hose	6mm-102mm	1/4''-4''
60 Degree Elbow Silicone Hose	19mm-76mm	3/4''-3''
90 Degree Elbow Silicone Hose	6mm-102mm	1/4''-4''
135 Degree Elbow Silicone Hose	6mm-100mm	1/4''-4''
180 Degree Elbow Silicone Hose	8mm-76mm	5/16''-3''
Tee Silicone Hose	32mm-76mm	1-1/4''-3''
Silicone Hump Hose	32mm-350mm	1-1/4''-14''
Silicone Heater Hose	13mm-102mm	1/2''-4''
Food Grade Silicone Hose	3mm-31mm	1/8''-1-1/4''
Medical Grade Silicone Hose	6mm-102mm	1/4''-4''
Silicone Braided Hose	3mm-31mm	1/8''-1-1/4''
