Product Details
Place of Origin: CHINA
Brand Name: JIAYAO/RUNXI/OEM/ODM
Certification: ISO 9001
Model Number: SAE100 R1
Payment & Shipping Terms
Minimum Order Quantity: 1 Meter
Price: US$ 1 Meter
Payment Terms: L/C, T/T
Material: |
Nitrile Rubber |
Capability: |
Rubber Oil Hose |
Color: |
Black |
Product Name: |
Wire Braid Hydraulic Hose |
Application: |
Oil Cooling System |
Standard: |
SAE100 R1 |
Surface: |
Cloth Wrapped Or Smooth |
Certification: |
ISO9001:2008 |
Working Temperature: |
-40 To 100°c |
Size: |
1/4"~2" |
Feature: |
Flexible, Corrosion Resistant, Abrasion Resistant |
Material: |
Nitrile Rubber |
Capability: |
Rubber Oil Hose |
Color: |
Black |
Product Name: |
Wire Braid Hydraulic Hose |
Application: |
Oil Cooling System |
Standard: |
SAE100 R1 |
Surface: |
Cloth Wrapped Or Smooth |
Certification: |
ISO9001:2008 |
Working Temperature: |
-40 To 100°c |
Size: |
1/4"~2" |
Feature: |
Flexible, Corrosion Resistant, Abrasion Resistant |
SAE100 R1
High pressure hose is made of internal rubber ,middle rubber,1 layer of wire-wood,and external rubber .
One Steel Wire Rubber Braided High Pressures Hydraulic Hose:
This hose shall consist of an inner tube of oil resistant synthetic rubber, a single steel wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
Purpose: Suitable for petroleum based and water based hydraulic fluids.
Working temperature: -40 ºC~+100 ºC.
A hydraulic hose is used anywhere in a hydraulic system requiring a flexible connection between two fluid ports. A hydraulic hose is a synthetic rubber tube surrounded by some sort of flexible strength enhancing winding, such as metal or fiber, and then covered in another rubber carcass
|
SIZE
|
SIZE
|
I.D
|
W.D
|
O.D
|
W.P
|
P.P
|
B.P
|
min B.R |
W.T
|
||||||||
| mm | Inch | Min | Max | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm |
Kg/m
|
| 5 | 3/16 | 4.6 | 5.4 | 8.9 | 10.1 | 11.9 | 13.5 | 12.5 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 3.54 | 90 | 0.20 |
| 6.3 | 1/4 | 6.2 | 7.0 | 10.6 | 11.7 | 15.1 | 16.7 | 14.1 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 3.94 | 100 | 0.25 |
| 8 | 5/16 | 7.7 | 8.5 | 12.1 | 13.3 | 16.7 | 18.3 | 15.7 | 17.5 | 2540 | 35 | 5075 | 70 | 10150 | 4.53 | 115 | 0.31 |
| 10 | 3/8 | 9.3 | 10.1 | 14.5 | 15.7 | 19.0 | 20.6 | 18.1 | 15.7 | 2280 | 31.5 | 4570 | 63 | 9135 | 4.92 | 125 | 0.36 |
| 12.5 | 1/2 | 12.3 | 13.5 | 17.5 | 19.0 | 22.2 | 23.8 | 21.5 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 7.09 | 180 | 0.45 |
| 16 | 5/8 | 15.5 | 16.7 | 20.6 | 22.2 | 25.4 | 27.0 | 24.7 | 10.5 | 1520 | 21 | 3045 | 42 | 6090 | 8.07 | 205 | 0.52 |
| 19 | 3/4 | 18.6 | 19.8 | 24.6 | 26.2 | 29.4 | 31.0 | 28.6 | 8.7 | 1260 | 17.5 | 2540 | 35 | 5075 | 9.45 | 240 | 0.65 |
| 25 | 1 | 25.0 | 26.4 | 32.5 | 34.1 | 36.9 | 39.3 | 36.6 | 7 | 1015 | 14 | 2030 | 28 | 4060 | 11.81 | 300 | 0.91 |
| 31.5 | 1-1/4 | 31.4 | 33.0 | 39.3 | 41.7 | 44.4 | 47.6 | 44.8 | 4.3 | 620 | 8.7 | 1260 | 17.5 | 2540 | 16.54 | 420 | 1.30 |
| 38 | 1-1/2 | 37.7 | 39.3 | 45.6 | 48.0 | 50.8 | 54.0 | 52.0 | 3.5 | 510 | 7 | 1015 | 14 | 2030 | 19.69 | 500 | 1.70 |
| 51 | 2 | 50.4 | 52.0 | 58.7 | 61.9 | 65.1 | 68.3 | 65.9 | 2.6 | 380 | 5.2 | 750 | 10.5 | 1520 | 24.8 | 630 | 2.00 |

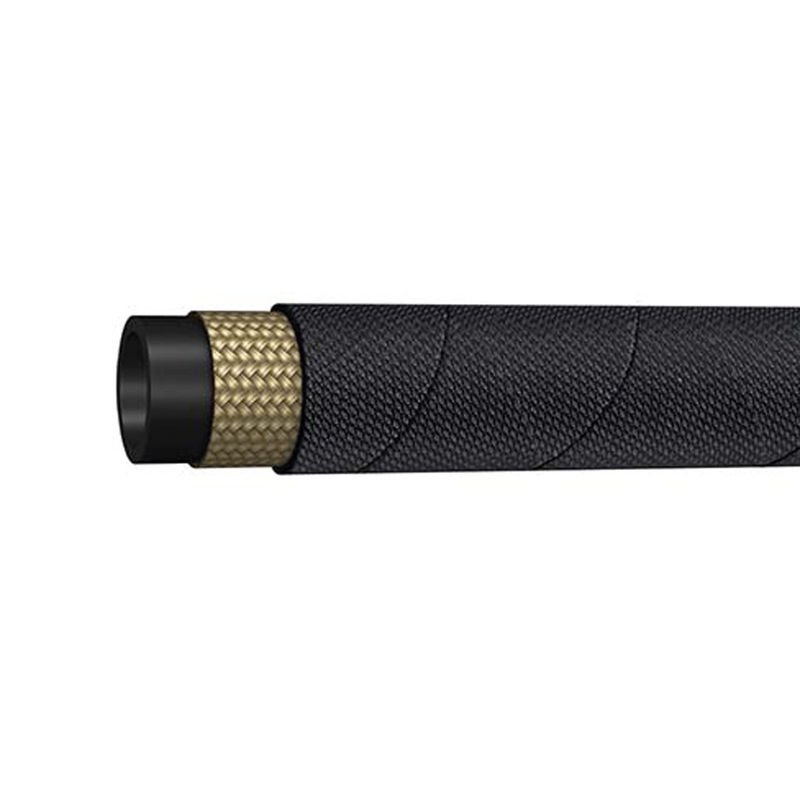

Wrapped Surface:
Smooth Surface:
