Product Details
Place of Origin: CHINA
Brand Name: JIAYAO/RUNXI/OEM/ODM
Certification: ISO 9001
Model Number: SAE100 R12
Payment & Shipping Terms
Minimum Order Quantity: 1 Meter
Price: US$ 1 Meter
Payment Terms: L/C, T/T
Material: |
Nitrile Rubber |
Capability: |
Rubber Oil Hose |
Color: |
Black |
Product Name: |
Wire Braid Hydraulic Hose |
Application: |
Oil Cooling System |
Standard: |
SAE100 R12 |
Surface: |
Cloth Wrapped Or Smooth |
Certification: |
ISO9001:2008 |
Feature: |
Flexible, Corrosion Resistant, Abrasion Resistant |
Working Temperature: |
-40 To 100°c |
Siza: |
3/8"~2" |
Material: |
Nitrile Rubber |
Capability: |
Rubber Oil Hose |
Color: |
Black |
Product Name: |
Wire Braid Hydraulic Hose |
Application: |
Oil Cooling System |
Standard: |
SAE100 R12 |
Surface: |
Cloth Wrapped Or Smooth |
Certification: |
ISO9001:2008 |
Feature: |
Flexible, Corrosion Resistant, Abrasion Resistant |
Working Temperature: |
-40 To 100°c |
Siza: |
3/8"~2" |

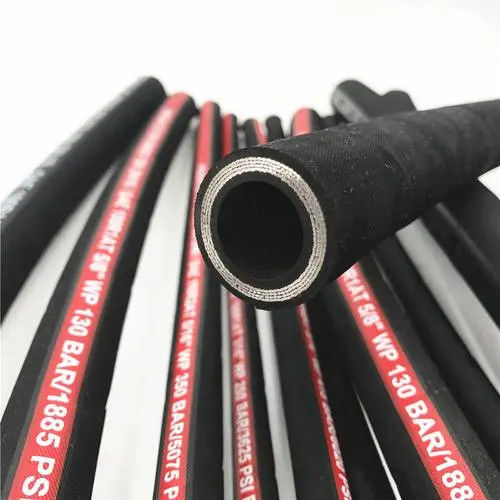

SAE 100 R12, high pressure with four wire reinforced hydraulic hose, is suitable for delivering petroleum-based hydraulic oils in the working temperature of -40 °C to +100 °C. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality oil resistant synthetic rubber, making the hose widely used in delivering petroleum-based hydraulic oils. The reinforcement is made from four layers of high tensile and high strength spiraled steel wire in alternating direction, making the hose have very high working pressure. The cover is made from super high quality oil and weather resistant synthetic rubber, making the hose have longer service life.
Recommended For: Extremely high pressure, high impulse hydraulic applications. Exceeds all performance requirements for SAE 100 R9 / R10 / R12, EN856 R9 / R10 / R12, SAE 100 R12 and EN856 4SP. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
Tube: Black, oil-resident synthetic rubber (Nitrile)
Reinforcement: Four alternating layers of spiraled, high-tensile steel wire.
Cover: Black, oil-resistant synthetic(Nitrile).
Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)
Application: Hydraulic system service with petroleum and water-based fluids, for general industrial use.
Features:
1,Good resistance to oil
2,Good resistance to extremely high pressure.
3,Good resistance to abrasion, corrosion, weather, ozone, cut, aging and sunlight.
|
SIZE
|
SIZE
|
I.D
|
O.D
|
W.P
|
P.P
|
B.P
|
min B.R
|
W.T
|
|||||
| mm | Inch | Min | Max | Max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm |
Kg/m
|
| 10 | 3/8 | 9.3 | 10.1 | 21.0 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 4.92 | 125 | 0.62 |
| 13 | 1/2 | 12.3 | 13.5 | 24.6 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 7.09 | 180 | 0.85 |
| 16 | 5/8 | 15.5 | 16.7 | 28.2 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 7.87 | 200 | 1.29 |
| 19 | 3/4 | 18.6 | 19.8 | 31.5 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 9.45 | 240 | 1.47 |
| 25 | 1 | 25.0 | 26.4 | 39.2 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 11.81 | 300 | 2.00 |
| 32 | 1-1/4 | 31.4 | 33.0 | 48.6 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 16.54 | 420 | 2.86 |
| 38 | 1-1/2 | 37.7 | 39.3 | 55.0 | 17.5 | 2540 | 35 | 5080 | 70 | 10160 | 19.69 | 500 | 3.24 |
| 51 | 2 | 50.8 | 52.0 | 68.3 | 17.5 | 2540 | 35 | 5080 | 70 | 10160 | 25.20 | 640 | 4.80 |
