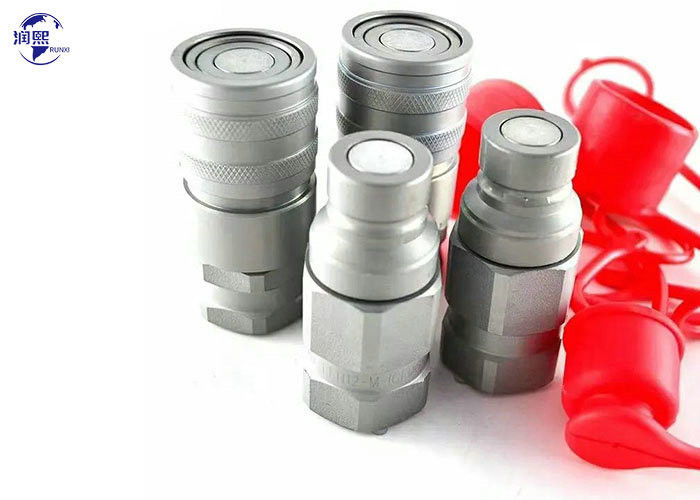

Hydraulic Excavator Quick Connect And Disconnect Coupling Stainless Steel

Stainless Steel Quick connect couplings are designed to quickly connect and disconnect hoses, pipes, or equipment without the need for tools or special skills.The couplers are made of high-quality stainless steel, which provides excellent resistance against rust, corrosion, and chemicals. Stainless steel quick couplers are capable of handling high-pressure and high-temperature applications.

Feature:

1. Poppet valves are available to prevent uncoupled leakage.

2. Poppet valves open automatically when coupled, within rated working pressure, to keep the expedite flowing.

3. Critical parts are hardened for durability.

4. Secured ball-locking mechanism holds the two matchable parts together.

5.Prevention of hose torsion due to movement possibity in coupled position.

6. Socket and plug are precision machined from solid bar stock.

7.Surface treatment Cr III

8.Complying with the standard of ISO A. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series, HANSEN HA 15000 Series, Tomco A5600 Series, Stucchi BIR Series and Dixon K Series hydraulic quick release coupling

Standard Construction and Option:

• Carbon steel with trivalent plating (zinc nickel plating available)
• Fitted with Nitrile seals (Viton seals availabe)
• Carbon steel body (Stainless steel 304/316 availabe)
• Thread option: NPT/BSPP/BSPT availabe

Standard: ISO7241-B, ISO16028, Interchangeable with ISO 16028 and ISO 7241-A standard quick couplers.
Application:
- For fast and secure fluid transfer between pipes, hoses, tanks and equipment. (used for construction equipment, forest equipment, hydraulic machinery and oil equipment.)
- Widely used in pneumatic and hydraulic systems to connect hoses, cylinders, valves and other components.
- Also used in agriculture applications for connecting irrigation systems, pumps and hoses.

Quick Coupling Parameters:
