Product Details
Place of Origin: China
Brand Name: JIAYAO/RUNXI/OEM/ODM
Certification: ISO9001:2008
Model Number: Large Diameter Suction&Discharge Hose
Payment & Shipping Terms
Minimum Order Quantity: 1 Meter
Price: US$ 1/Meter
Payment Terms: L/C, T/T
Capability: |
Acid Alkali Resistant Rubber Hose |
Color: |
Black |
Product Name: |
Suction And Discharge Pipe |
Application: |
Dredging, Mining, Construction, Etc. |
Certification: |
ISO9001:2008 |
Material: |
Rubber |
Capability: |
Acid Alkali Resistant Rubber Hose |
Color: |
Black |
Product Name: |
Suction And Discharge Pipe |
Application: |
Dredging, Mining, Construction, Etc. |
Certification: |
ISO9001:2008 |
Material: |
Rubber |
Product Introduction:

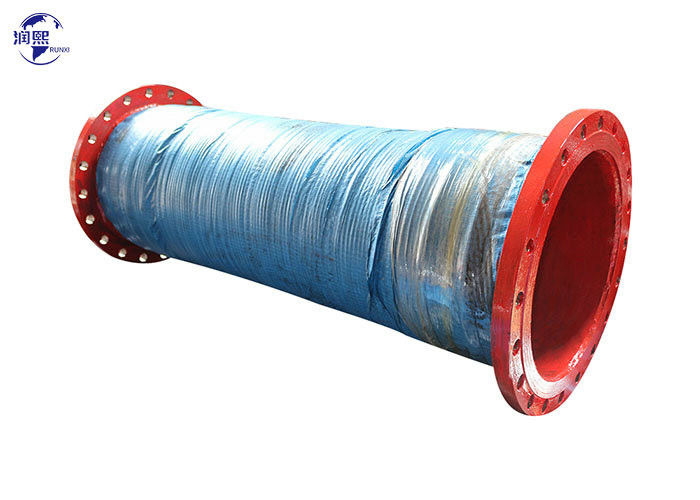

Discharge suction rubber hose is part of dredge pipeline for dredger, usually with the steel pipe or HDPE pipe connected in one set of pipeline. We know that the general steel pipe and HDPE pipe do not have much flexibility, while the discharge rubber hose has such characteristics. In the working environment with high wind and waves, the discharge rubber hose can rely on its own softness to offset part of the wind, so as to ensure the safety of the whole pipeline. Besides, Dredging hoses' wear lining is super wearable and suitable of various of dredging objects. This allows for smooth bending of the hose. It can be equipped with fixed steel flanges, loose steel flanges or rubber flanges.
The rubber suction and discharge hose has an inner rubber layer, multiple layers of cloth or cord and spiral steel wire are used as the reinforcement layer, and the outer rubber layer is determined according to the use of the pipe. These materials provide resistance against the abrasion and chemical attack from the transported mud or slurry
Outer Cover: Anti-aging and Abrasion Resistant Synthetic Rubber (SBR or NR)
Reinforcement Layer: High Strength Synthetic Textile Cords or Steel Wire Helix
Inner Tube: Anti-aging and Abrasion Resistant Synthetic Rubber
Applications:
Suction and delivery hose is widely used in dredging engineering dredging vessels to clean up sludge, suction and discharge seawater, sand, sewage, sludge and agricultural irrigation.
Large diameter mud suction and discharge rubber hoses are also used for transferring drilling mud and other fluids between offshore drilling platforms and onshore storage tanks.
Suction and Discharge Hose Size Chart:
| Name | Nominal inner diameter D(mm) | Thickness of internal rubber layer t2(mm) | Extemal dimeter of ring flange D1 | Extemal dimeter of ring flange t1(mm) | Thickness of joint thread t1 | Center circle diamter (mm) |
Number | Diameter (mm) |
| 200 | 205±3 | 10 | 320 | 12±2 | 6 | 280±1.0 | 8 | 23±1 |
| 250 | 245±3 | 385 | 345±1.0 | 12 | ||||
| 300 | 305±3 | 430 | 390±1.0 | |||||
| 350 | 338±5 | 480 | 19±2 | 435±1.0 | ||||
| 400 | 400±5 | 540 | 495±1.0 | 16 | ||||
| 510 | 510±5 | 15 | 710 | 9 | 650±1.0 | |||
| 560 | 560±5 | 765 | 690±1.0 | 18 | ||||
| 640 | 640±5 | 20 | 914 | 22±2 | 750±1.0 | 20 | ||
| 630 | 630±5 | 934 | 765±1.0 | 25±1 | ||||
| 660 | 660±5 | 870 | 780±1.0 | 24 | ||||
| 700 | 700±5 | 905 | 25±2 | 840±1.0 | 27±1 | |||
| 710 | 710±5 | 930 | 28±2 | 860±1.0 | ||||
| 760 | 760±5 | 990 | 900±1.0 | 30±1 | ||||
| 800 | 800±5 | 25 | 1050 | 32±2 | 12 | 970±1.0 | 32 | 30±1 |
| 840 | 840±5 | 1090 | 1010±1.0 | |||||
| 860 | 860±5 | 1090 | 1010±1.0 |
