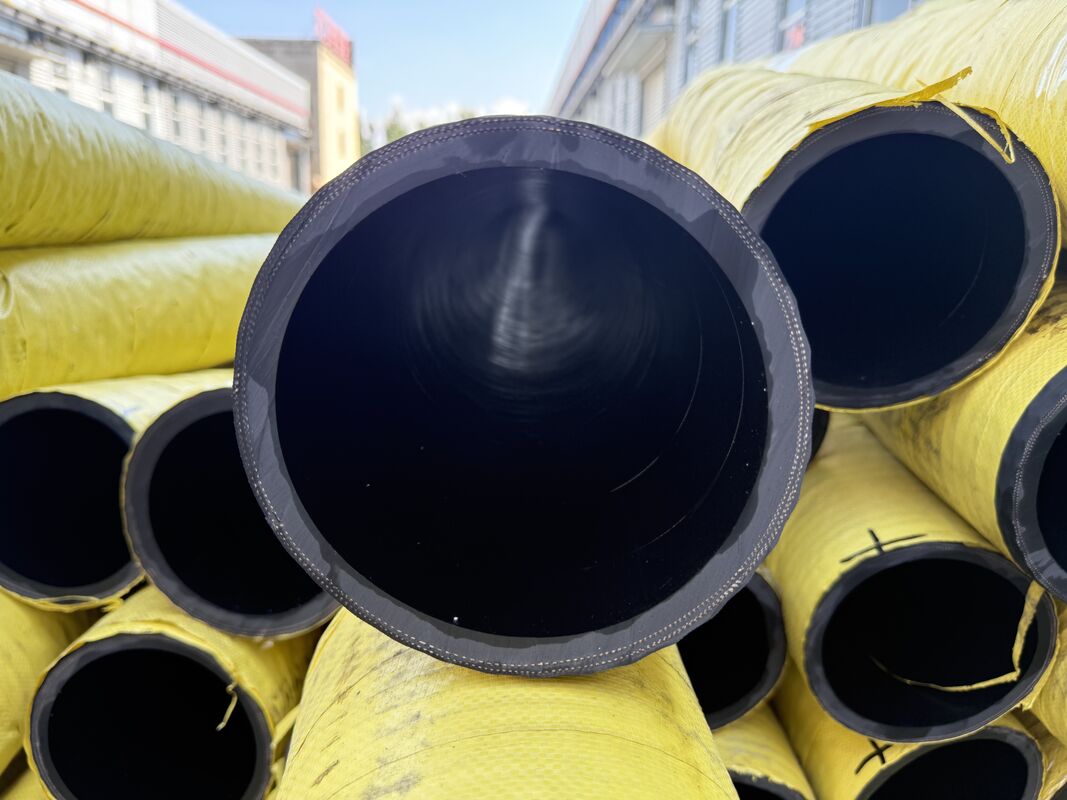

Tank Truck Mud Concrete Suction And Delivery Wear resistant Rubber Hose

Product Details

Place of Origin: CHINA

Brand Name: OEM/ODM

Certification: ISO 9001

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: $20/m

Packaging Details: Woven bags or wooden boxes

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000 meters per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Working Temperature:	-40 To 85°c	Reinforcement:	Multiple Layers Of Synthetic Fiber Or Steel Wire
Material:	Reinforced Rubber	Length:	Customizable, Typically From 1 Meter To 10meters
Application:	Tank Truck Suction And Delivery	End Fittings:	Flanges, Camlocks, Quick Couplings, Or Threaded Connectors
Standards Compliance:	ISO 9001	Inner Diameter:	Varies From 6mm To 300mm
Capability:	Wear Resistance	Weight:	Varies Depending On Size And Material, Typically 0.5 To 5 Kg/m
Surface:	Cloth Wrapped Or Smooth	Pressure Rating:	Up To 30 Bar (depending On Hose Type)

Working Temperature:	-40 To 85°c
Reinforcement:	Multiple Layers Of Synthetic Fiber Or Steel Wire
Material:	Reinforced Rubber
Length:	Customizable, Typically From 1 Meter To 10meters
Application:	Tank Truck Suction And Delivery
End Fittings:	Flanges, Camlocks, Quick Couplings, Or Threaded Connectors
Standards Compliance:	ISO 9001
Inner Diameter:	Varies From 6mm To 300mm
Capability:	Wear Resistance
Weight:	Varies Depending On Size And Material, Typically 0.5 To 5 Kg/m
Surface:	Cloth Wrapped Or Smooth
Pressure Rating:	Up To 30 Bar (depending On Hose Type)

Description

Tank Truck Mud Concrete Suction And Delivery Wear resistant Rubber Hose

Heavy Duty Mud/Concrete Suction and Delivery Flexible Rubber Hose Especially For Tank Truck

Product Description

This hose is specially designed for suction and delivery of concrete, cement slurry, mortar and other abrasive media on concrete mixer trucks, pump trucks and related construction equipment. It features excellent wear resistance, pressure resistance, flexibility and aging resistance, suitable for harsh construction site environments.

Key Features

Extremely abrasion-resistant inner tube for extended service life
High flexibility for easy handling, routing and installation
Resists kinking, twisting and collapse during suction and delivery
High pressure and vacuum resistance for stable performance
Excellent ozone, weather and aging resistance for outdoor use
Smooth inner bore reduces flow resistance and prevents concrete residue adhesion
Rugged construction withstands harsh job site handling and impact

Structure

Inner tube: Black, smooth, highly wear-resistant synthetic rubber, resistant to abrasion from sand, aggregate and cement.
Reinforcement layer: High-strength textile cord with helical steel wire support, ensuring burst resistance and preventing collapse under suction pressure.
Cover: Black, weather-resistant synthetic rubber, resistant to ozone, sunlight, oil and mechanical abrasion.

Temperature Range

-40°C to +85°C (-40°F to +185°F)

Characteristics

Extremely wear-resistant inner tube for long service life
Flexible and kink-resistant for easy handling
Withstands both positive delivery pressure and negative suction pressure
Good ozone and weather resistance for outdoor use
Suitable for concrete transfer on mixer trucks and construction sites

Application

Concrete suction and discharge on mixer trucks; conveying concrete, mortar, cement slurry and similar abrasive media in construction projects.

Tank Truck Mud Concrete Suction And Delivery Wear resistant Rubber Hose 1

Technical Specification

Size	I.D.	O.D.	W.P.		B.P.
Inch	mm	mm	Bar	Psi	Bar	Psi
1-1/4''	32	46	10	150	30	450
1-1/2''	38	53	10	150	30	450
2''	50	69	10	150	30	450
1-1/2''	64	83	10	150	30	450
3''	76	98	10	150	30	450
3-1/2''	89	113	10	150	30	450
4''	102	126	10	150	30	450
5''	127	153	10	150	30	450
6''	152	180	10	150	30	450
8''	203	235	10	150	30	450
10''	254	287	10	150	30	450
12''	305	335	10	150	30	450
